QHP-A08

GC CUCITO RIVENDITORE AUTORIZZATO JUKI

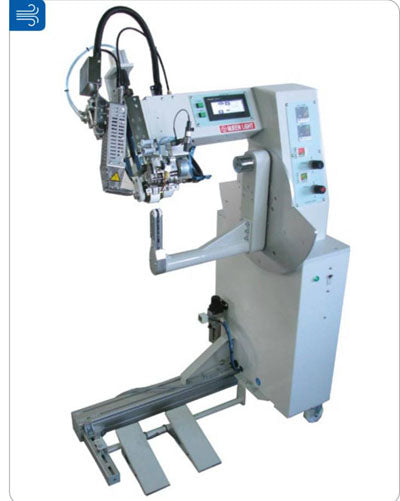

    INFO CELL.328-42-65-416 TEL.081-198-53-928   Post-Bed, Seam-Sealing Machine with Differential Speed and Variable Cylinder / Post Arm KEY FEATURES Shape of air delivery system and rollers make this suitable for curved objects The machine arm can register the movements of the operator during bonding and adjust the angle accordingly Angle adjustment ensure a smooth and easy operation Air temperature can be easily adjusted through the operational interface   Model name QHP-X Power Required 1P/ 200, 220, 240 V 50/60 Hz Power Consumption Abt. 2.3 kVA Nozzle Heater 2.0 kW (200 V) Nozzle Air Temp. Up to 750°C Feed Speed Max: 10 m / min Upper Roller Silicon rubber (30 mm) Lower Roller For small diameter tape sealing Air Consumption 100 litter / min Arm type Variable moving type
